  Product Show
 MB-MF系列熔喷式PP微孔滤膜
 MB melt blown PP filter element >> MB-MF Pleated PP Membrane Filters >> MF-PP Pleated PP Membrane Filters


Number:
1A04
Name:
MF-PP Pleated PP Membrane Filters
Spec:
Memo:
Class:
MB melt blown PP filter element

   Product Description

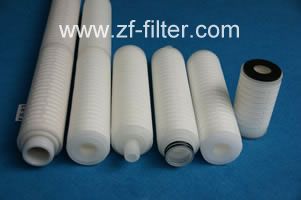

ZEMFONS™ MF-PP Series Pleated
membrane filter cartridge is constructed
by  polypropylene  membrane  and
nonwoven. The pleated design maximizes
filtration area for longer service life.

◎ Filter Materials :
   polypropylene
◎ Core,Cage, End Caps:
   Polypropylene
◎ Gaskets/O-Rings:
  Silicone, Viton, EPDM, Buna, Teflon

◎Filter Specifications
● Micron Ratings:0.1,0.22,0.45,1,3,5,10,20,50,75 μm
● Length:125,127,250,254,500,508,750,762,980,1000,1016 mm
● Filtration efficiency: 96%-99%
● OD:Ø68mm, Ø83mm
● ID:Ø28mm
● End Cap : DOE,222/Flat, 222/Fin, 226/Flat, 226/Fin
● Maximum operating temperature:70℃
● Maximum operating differential pressure:4.0bar
● Sterilization temperature time:30 Minute cycles at 120℃

◎Features:
●High surface area design provides high flow rates and high dirt holding  capacity.
●Low pressure drop, long service lifespan.
●Manufactured in Cleaning Room

◎Applications :
● Pharmaceutics
● Food and beverage
● Oil industry
● Semiconductor
● Chemical industry
● Drinking water treatment

◎ Product Order:
   Length+MF-PP+ Micron Ratings+End Cap+Gaskets/O-Rings
