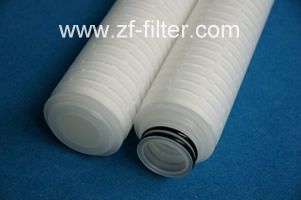

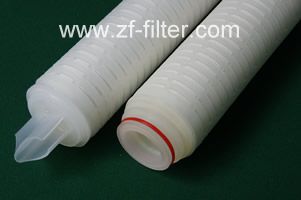

ZEMFONS™ MF-NY Series Pleated
Nylon membrane  filter  cartridge  is
constructed  by Nylon membrane and
nonwoven .The pleated design maximizes
filtration area for longer service life.

◎Filter Materials：
  Nylon Membrane(Ny6)
◎Core,Cage, End Caps：
  Polypropylene
◎Gaskets/O-Rings：
  Silicone, Viton, EPDM, Buna, Teflon

◎Filter Specifications
● Micron Ratings:0.1/ 0.22/ 0.45/ 1,3 μm
● Filtration efficiency: ≥99%
● Length：125,127,250,254,500,508,750,
           762,980,1000,1016 mm
● Outside Diameter：Ø68mm, Ø83mm
● Inside Diameter：Ø28mm
● End Cap : DOE,222/Flat, 222/Fin,
            226/Flat, 226/Fin
● Maximum operating temperature：70℃
● Maximum operating differential pressure：4.0bar ,normal temperature
● Sterilization temperature time：30 Minute cycles at 120℃

◎Features:
●High surface area design provides high flow rates and high dirt holding  capacity.
●Low pressure drop, long service lifespan.
●Manufactured in Cleaning Room

◎Applications :
 ● Pharmaceutics
 ● Food and beverage
 ● Oil industry
 ● Semiconductor
 ● Chemical industry
 ● Drinking water treatment

◎Product order:
  Length+MF-NY+ Micron Rating(µ)+End Cap+Gaskets/O-Rings
