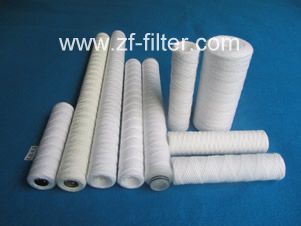

ZEMFONS™ SWF Series wound filter cartridges are structured loose outer layers and tight inner layers 。 Which can offer true depth filtration for high dirt holding capacity 。
Features: @ Fits all the standard housings @ Low pressure drop, high dirt holding capacity and long service life @ Loose outer layers and tight inner layers offers effective depth filtration @ Various filter media fit with various applications
Specifications: @ Filter media: Polypropylene Fiber, Cotton Fiber, Glass Fiber @ Core material: Polypropylene,SUS304,SUS316 @ OD: 57, 60, 63.5, 65, 115 mm @ ID: 28, 30mm @ Length: 125,127,250,254,500,508,750,762,1000,1016 mm @ Micron Rating: 0.5,1, 5, 10, 20, 30, 50, 75, 100、200 micron @ Max. working temp:Polypropylene fiber + Polypropylene core 80℃ Cotton fiber + Stainless steel core 120 ℃ ◎Maximum pressure≤ 0.50Mpa
Applications: @ PCB Electronic Industrial @ Semiconductor @ Pharmaceuticals @ Water treatment @ Plating Chemicals, solvents
Product order: Length+OD+ID+Micron Rating(µ)+SWF+Filter media+ Core material
|
